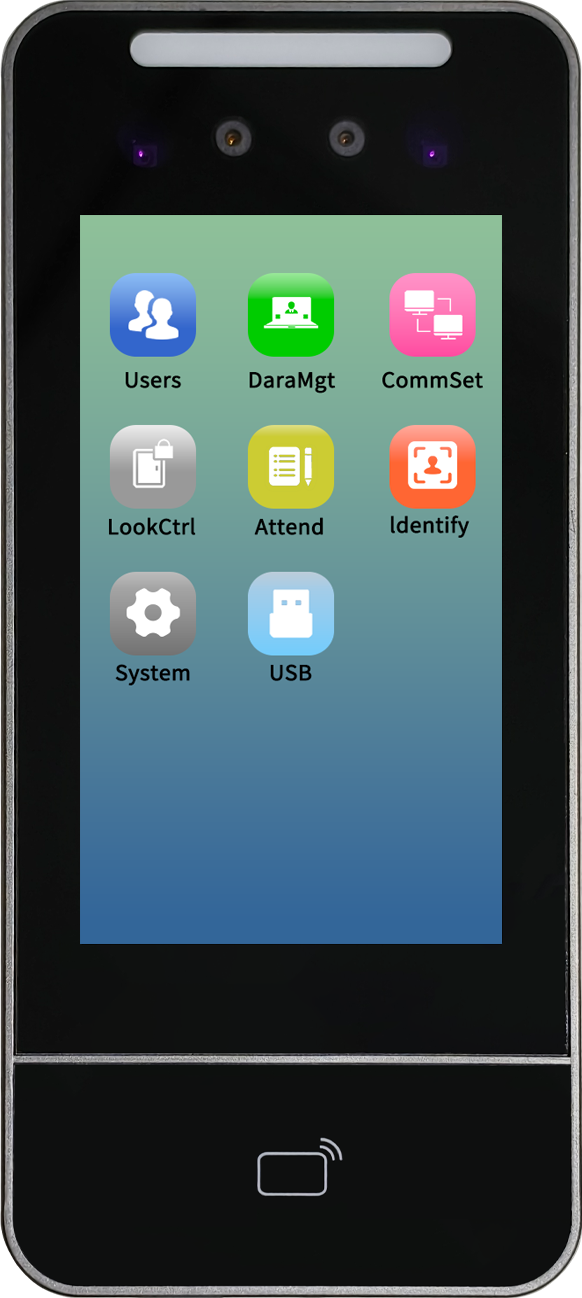

Face Recognition Elevator Floor Control System
JF-53T
Face Recognition Elevator Floor Control System
PRICING & ORDERS
Volume-Based Pricing
Pricing may vary based on order quantity. Contact our sales team for a quotation based on your requirements.
01
Product gallery
Official supplied product imagery.
02
Technical specifications
Verified values transcribed from the supplied English product specifications.
CameraDual-camera with 2 million pixels
Screen5-inch high-definition display
Touch PanelCapacitive touchscreen
LanguageSimplified Chinese, English
Face Capacity5,000
Card Capacity10,000
Password Capacity10,000
Record Capacity200,000
Verification MethodsFace / IC card / Password / Visitor QR code
Communication MethodU-disk / TCP/IP (optional Wi-Fi / 4G)
Controllable FloorsStandard configuration: face recognition host plus 16-layer expansion board; expandable by up to 4 additional boards for control of up to 64 floors.
Output MethodWiegand, relay
Input MethodDoor open button
Dimensions192 mm x 86 mm x 22 mm
Operating SystemLinux
Liveness DetectionDual-camera liveness detection
Power SupplyDC12V/2A
Operating Temperature & Humidity-30 to 60 deg C; 10-90% RH
External InterfacesWiegand output (26/34), relay output, exit button, doorbell
Recognition Speed<0.5s
Card ReadingStandard IC card reader
Protection RatingIP65 waterproof and dustproof
User Capacity10,000
Fingerprint Capacity5,000
